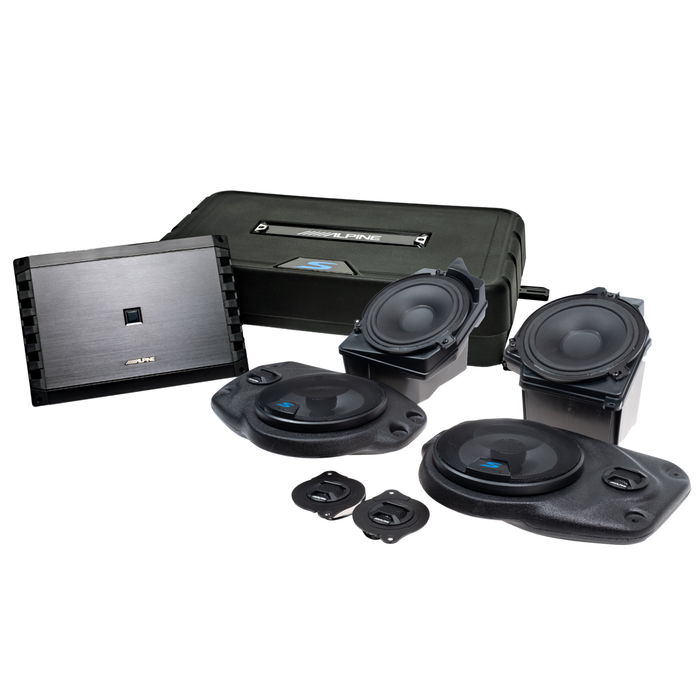

Our Plug and Play Alpine Audio Bundle Includes:

• Speakers- 8-Speaker Plug and Play Kit
• Amplifier- 5-Channel S2-A55V or HDA-V90 Plug and Play Kit
• Subwoofer- SS-SB10 Single 10" S-Series Sub or SS-SB12 Single 12" S-Series Sub (Fits in the rear cargo area of the Jeep Wrangler)
• Subwoofer- S-DB8V-TRK- Dual 8" Alpine Halo S-Series or R2-DB8V-TRK- Dual 8" Alpine Halo R-Series (Fits under the rear seat of the  Jeep Gladiator, or in the rear cargo area of the  Jeep Wrangler)
• Fuse Holder Bracket: Sold separately

Compatibilities:

• Plug and Play to all Jeep configurations- Descriptions below

Our Trail Seven complete 8-speaker, 5-channel, and Subwoofer plug and play bundle is designed to fit into your Jeep JL Wrangler or Jeep JT Gladiator.  Our Jeep specific harnesses are included to take out the guesswork during installation and make it a true plug-and-play solution.

Simple and easy to follow instructional videos by Trail Seven can be found here to help guide you through the installation of the speakers, amplifier, and subwoofer.  Regardless if you have a factory radio or an aftermarket radio, or if you have the factory installed amplified system, we have a bundle that fits your needs.

PLUG AND PLAY SPEAKER INSTALLATION VIDEO- DASH AND SOUNDBAR

PLUG AND PLAY SPEAKER INSTALLATION VIDEIO- KNEE PANEL SPEAKERS

PLUG AND PLAY AMPLIFIER AND SUBWOOFER INSTALLATION VIDEO

TESTED AND APPROVED BY TRAIL SEVEN: Our Alpine Full System Bundle has been installed and tested on our Trail Seven Jeep and we're pleased to put our stamp of approval on this bundle!

• Overview
• Product Highlights
• Ask A Question

• Alpine Plug and Play Full Audio System for your Jeep - (packages explained)

  Option 1: Stock/ OEM Factory Head Unit/ Radio Non-Factory Amplified (Standard):Non-factory Amplified= Your Jeep will not have a factory subwoofer located in the rear of the Jeep or behind the rear bench in a Gladiator.  Our system will be a direct connection to your factory radio with use of the added PAC AamPRO module.  You will not need to run new speaker wire as our wiring harness will allow you to utilize the existing factory speaker wire from the radio to the speakers saving time and cost.

  Option 2: Stock/ OEM Factory Head Unit/ Radio Factory Amplified (Premium):Factory Amplified= Your Jeep will have a factory subwoofer located in the rear of the Jeep or behind the rear bench in a Gladiator.  Our system will be a direct connection to your factory radio with use of the added PAC AamPRO module.  You will not need to run new speaker wire as our wiring harness will allow you to utilize the existing factory speaker wire from the factory amplifier to the speakers saving time and cost.  We will include a harness connection which will bypass the factory amplifier and will utilize the factory speaker wire.

  Option 3: Aftermarket Head Unit, Non-Factory Amplified (Standard): Non-factory Amplified= Your Jeep will not have a factory subwoofer located in the rear of the Jeep or behind the rear bench in a Gladiator.  Our system will be a direct connection to your aftermarket head unit via RCA connections.  You will not need to run new speaker wire as our wiring harness will allow you to utilize the existing factory speaker wire from the radio to the speakers saving time and cost.  We will provide a 9-wire harness that you will need to tap into the speaker wire located behind the head unit.  With so many aftermarket configurations, we're unable to attach a specific connector for your exact aftermarket head unit, however we will provide the directions to make the connections.

  Option 4: Aftermarket Head Unit, Factory Amplified (Premium):Factory Amplified= Your Jeep will have a factory subwoofer located in the rear of the Jeep or behind the rear bench in a Gladiator.  Our system will be a direct connection to your aftermarket head unit via RCA connections.  You will not need to run new speaker wire as our wiring harness will allow you to utilize the existing factory speaker wire from the factory amplifier to the speakers saving time and cost.  We will include a harness connection which will bypass the factory amplifier and will utilize the factory speaker wire.

  What's In The Plug & Play Bundle?

  We've taken all the guess work out of upgrading the speakers in your 2018+ Jeep JL Wrangler and/ or your 2020+ Jeep JT Gladiator. We've partnered with some of the biggest and most reliable names in mobile electronics to bring you a high-end, super-reliable audio system -- that's packed with a 1-year no-questions-asked warranty on manufacturer defects.  All of our bundles are pre-wired and completely assembled prior to shipping from our Frederick, Maryland shop. When you get your bundle, it's all ready to drop in your Jeep! Here's what you can expect to be in your Alpine Speaker Plug & Play Bundle from Trail Seven:

  • Alpine SPV-10TW-WRA 1" Tweeters w/ crossovers (soundbar)
  • Alpine S-S65 6.5" Coaxial Speakers w/ 1" Tweeters (soundbar)
  • Alpine SPV-10TW-WRA 1" Tweeters w/ Crossovers (top dash)
  • Alpine SPV-65X-WRA 6.5" Component Speaker (knee panel)
  • Select Increments® JL/ JT sound bar speaker pods, pre-drilled
  • MB Quart Knee Pod with connectors
  • All required speaker adapters will be pre-sized for ease of installation
  • Plug and Play bundles will have all speaker pods drilled and set with speakers prior to shipping
  • Alpine HDA-V90 or S2-A55V 5-Channel Amplifier
  • Alpine SS-SB10 or SS-SB12 Down-Firing Sub
  • Alpine S-DB8V-TRK or R2-DB8V-TRK Truck Box
  • VK8 Amplifier Power Kit (power, ground, fuse block)
  • 6-Channel RCA's
  • 9-Wire Harness
  • Factory amp bypass harness(if opted for)
  • >We will provide the amp kit fully prepped for install with appropriate connectors attached, etc.
  • The 9-wire will be fully prepped for a plug and play install with termination connector to attach to the Kicker amplifier and necessary adapters to attach directly to the PAC module or amp bypass, which ever option chosen.

  Interested in our bundle for your JL Jeep Wrangler but have a question first? Simply complete the form below and we'll get back to you promptly!




  Ask A Question

• Product Highlights

  SPV-10TW-WRA 1" Tweeter

  Weather-Resistant 1” Component Tweeters for 2007 – Up Jeep® Wrangler and Jeep® Gladiator.

  • Weather-Resistant 1” Component Tweeters
  • Power Handling: 75W RMS / 225W Peak
  • Frequency Response: 2kHz - 22kHz
  • Nominal Impedance: 4Ω
  • Diaphragm: 1”

  S2-S65 6.5" Coax Speaker

  Next-Generation S-Series 6.5" Coaxial 2-Way Speaker Set.

  • Hi-Res Audio Certified (Up to 40kHz)
  • Integrated 1” Tweeters (Coaxial)
  • Woofer Size: 6.5”
  • Tweeter Size: 1” (Coaxial)
  • Power Handling: 80W RMS / 240W Peak
  • Frequency Response: 70Hz - 40kHz (Hi-Res)
  • Sensitivity: 88dB

  SPV-65X-WRA 6" Component Speaker

  The SPV-65X-WRA is a complete speaker system upgrade that is Alpine engineered for the Jeep.

  • CTA-2031 Power Rating: 75W RMS, 225W Peak

  • Nominal impedance 4 Ohm

  • Frequency response 65-22kHz

  • 1” Teteron dome tweeter
  • Weather resistant: IP55
  • Max RMS Power Capacity: 75W
  • Peak Power Capacity: 225W

  HDA-V90 5-Channel Amplifier

  With the highest quality music streaming available on the market, Alpine Status delivers a superior level of audio performance that will take your music to a whole new level.

  • Hi-Res Audio Playback (192kHz/24Bit)
  • Dimensions: 11.4375” x 7.5” x 2.125”
  • Power Rating: (14.4V, ≤1.0% THD+N)
  • 75W x 4 + 300W x 1 @ 4Ω
  • 100W x 4 + 500W x 1 @ 2Ω
  • Bridged: 200W x 2 @ 4Ω (ch1/2, ch3/4 only)
  • THD+N: 0.02% (10W into 4ohm)

  • S/N Ratio: 87dB (1W into 4ohm)
  • Selectable 2/4/6ch input
  • Variable High pass / Low pass crossover
  • Variable Subsonic filter (subwoofer)
  • Bass EQ (0 to +12dB, Variable)

  S2-A55V 5-Channel Amplifier

  Entry-level sound just got elevated with the S2-A55V 5-Channel Amplifier. Its sleek redesign houses an Alpine Class D Amplifier Circuit and is now certified for Hi-Res Audio.

  • Hi-Res Audio Certified (Up to 40kHz)
  • Dimensions: 11.9” W x 2.25” H x 8.25” D
  • Weight: 7 lbs
  • Power Rating: 14.4V, < 0.1% THD +N
  • Power Output: 40W x 4 + 200W x 1 @ 4Ω, 60W x 4 + 300W x 1 @ 2Ω
  • Bridged Power: 120W RMS x 2 @ 4Ω
  • S/N Ratio: >83dB
  • Frequency Response: 20Hz – 40kHz
  • Damping Factor: >100
  • CTA-2006-D Certification

  R2-DB8V-TRK Dual 8" Truck Box

  Now you can add deep, accurate bass in your Jeep without compromising valuable cabin space.

  • Groundbreaking Alpine Halo Design

  • ProLink™ Ported Enclosure
  • Expandable Width from 40" to 51"
  • Compact, Under-the-Seat Installation in your Gladiator
  • 750W RMS

  • Frequency Response: 32Hz-200Hz
  • Sensitivity: 84dB
  • Dual voice coils wired in parallel for a 2Ω load (Two 4Ω enclosures)

  S-DB8V-TRK Dual 8" Truck Box

  Now you can add deep, accurate bass in your Jeep without compromising valuable cabin space.

  • Groundbreaking Alpine Halo Design

  • ProLink™ Ported Enclosure
  • Expandable Width from 40" to 51"
  • Compact, Under-the-Seat Installation in your Gladiator
  • 600W RMS
  • Frequency Response: 34Hz-200Hz
  • Sensitivity: 84dB
  • Dual voice coils wired in parallel for a 2Ω load (Two 4Ω enclosures)

  SS-SB10 10" Shallow Enclosure

  With an ultra-shallow enclosure design and powerful sound output, the 10" S-Series Shallow Preloaded Subwoofer Enclosures give you the best of both worlds in size and sound.

  • Preloaded 10” S-Shallow Subwoofer
  • Rugged Polymer Enclosure Cabinet
  • Dimensions: 18.5” (W) x 4.5” (H) x 12.5” (D)
  • Power Handling: 300W RMS
  • Frequency Response: 35Hz-200Hz
  • X-Max: 11mm 1-Way Linear
  • Nominal Impedance: 2Ω
  • Copper Voice Coil: 2” (50.0mm)
    Single 2 Ohm Voice Coil for a 2 Ohm load

  SS-SB12 12" Shallow Enclosure

  With an ultra-shallow enclosure design and powerful sound output, the 12" S-Series Shallow Preloaded Subwoofer Enclosures give you the best of both worlds in size and sound.

  • Optimal Sealed Cabinet Quality

  • Preloaded 12” S-Shallow Subwoofer
  • Dimensions: 22.25” (W) x 5.25” (H) x 13.125” (D)
  • Power Handling: 300W RMS
  • Frequency Response: 30Hz-200Hz
  • X-Max:11mm 1-Way Linear
  • Nominal Impedance: 2Ω
  • Copper Voice Coil: 2” (50.0mm)
    Single 2 Ohm Voice Coil for a 2 Ohm load
